PRODUCTS – VITALIFE PAX 2

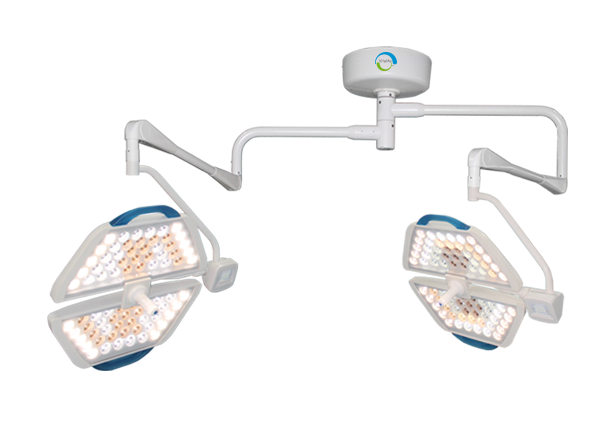

VITALIFE® PAX 2 DOUBLE
OPERATING LIGHT

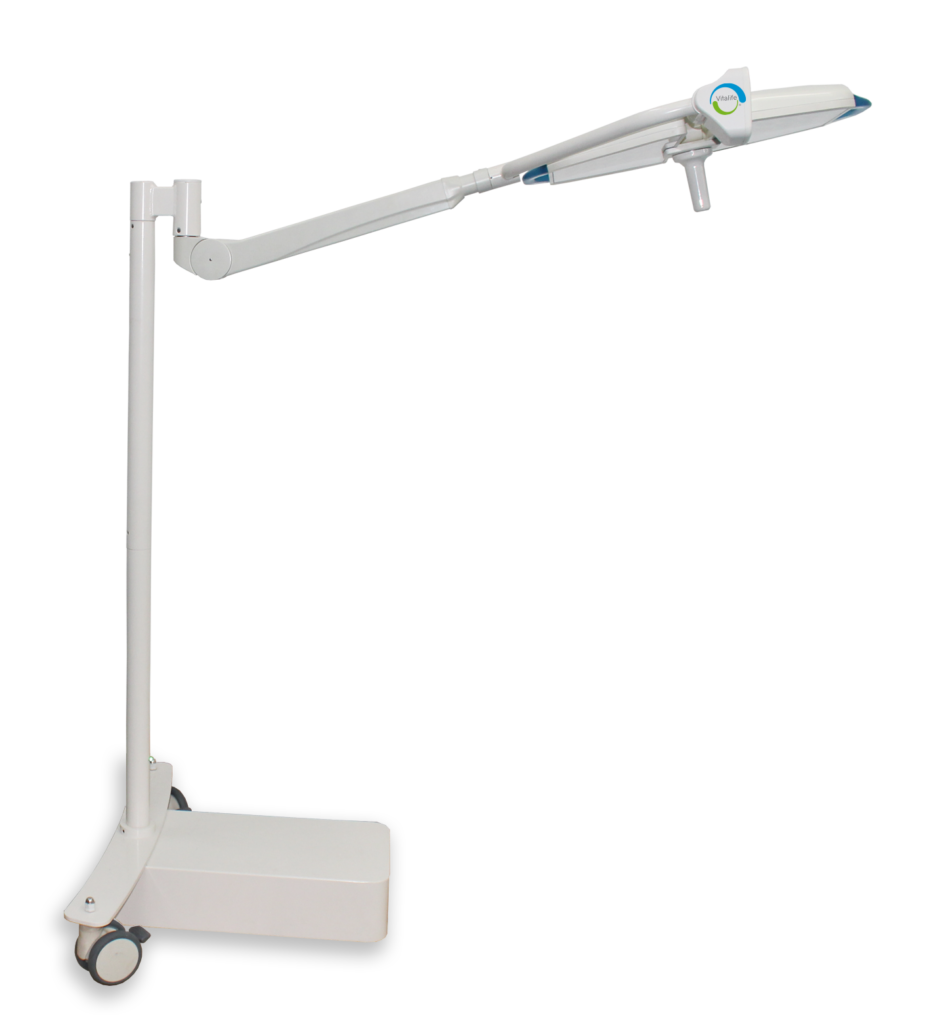

VITALIFE® PAX 2 MOBILE
OPERATING LIGHT

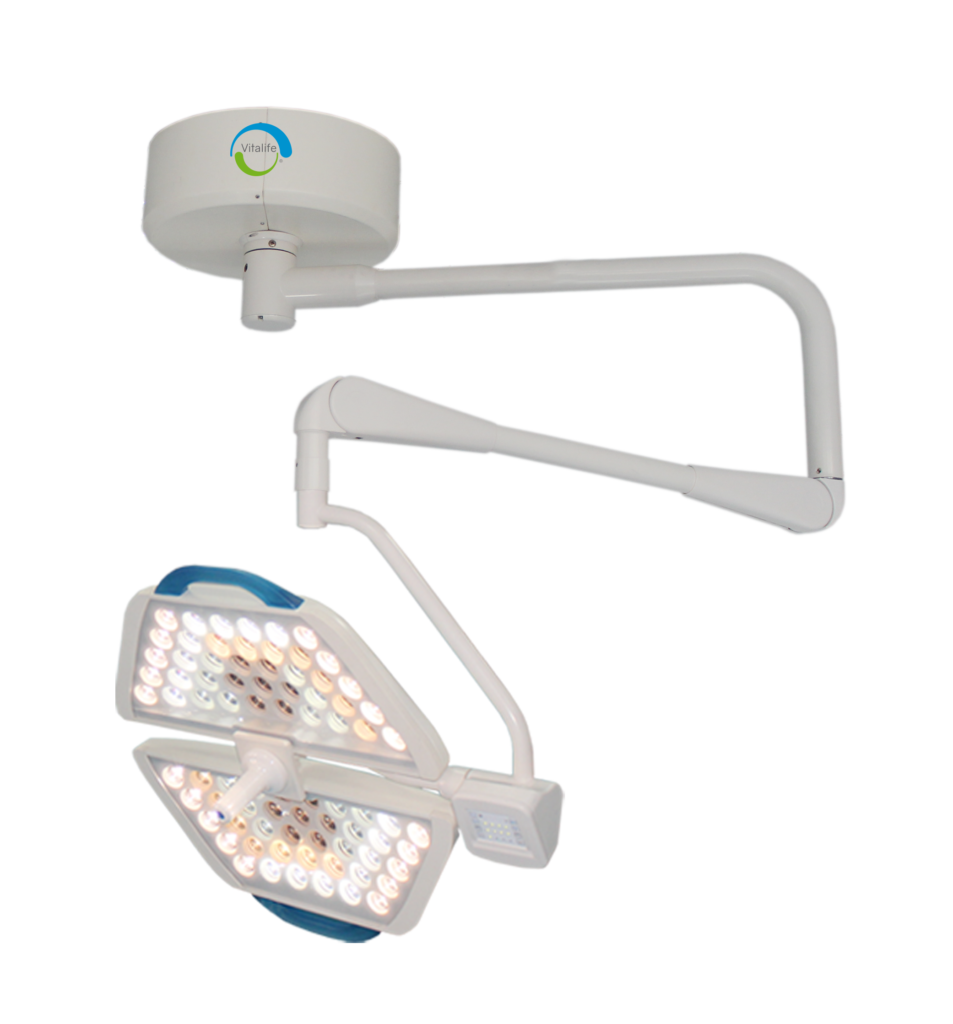

VITALIFE® PAX 2 SINGLE
OPERATING LIGHT
Function Features
- The light can satisfy different light spot requirements through its special optical software design,
- The unique spectral optical filter ensures the excellent color restoration.
- The energy-saving LED element with lowest heat emission features and cool light characteristic ensures the low surgical field temperature rise.
- The medical class LED is from German OSRAM Company.
- With over 50,000 hours effective working life, vitalife PLUS can extremely save the hospital’s maintenance cost.
- The excellent lighting depth and shadowless effect makes the operations under different lighting depth more convenient.
- The detachable handle made of special material can be sterilized in 135 C autoclave more than 3000 times.
- Using the medical class LED which is imported from the top lighting expert, German Osram Company.
Technical Data
| Technical Data | Vitalife Pax 2 |
|---|---|
| Central Illuminance (Lux) | 160,000 |
| Color Rendering Indez (Ra) | >95 |
| Focusable Light-field Size(mm) | 150-300 |
| Color Temperature (K) | A:4500 B:3500 4000 4500 5000 (Optional) |
| Effective Bulb Service Life (hour) | >50,000 |
| Diameter Lamp Housing (mm) | 700 |
| Lighting Depth L1+L2(mm) | >1000 |
| Power (W) | 80 |
| MIS Encoscopy Lighting | Available |
Options: Remote control – Touch-screem – HD camera system
Optional Full HD Digital Camera System
1080p—Full HD Camera System
- The highest standard in medical field.
- 16:9 digital image display.
- 1920*1080 full HD resolution.
- Top level digital camera with best quality.
| HD Camara Specifications | ||
|---|---|---|
| Image Sensor | 1/2.8″ Exmor CMOS | |
| HD Digital Pixel (Resolution) | >2 million pixels (1920×1080) | |
| Aspect Ratio | 16:9 | |
| Video Recording | 1080p | |
| Lens | 10x optical zoom / 16xdigital zoom F=1.8-2.5(f=6.3-63mm) | |
| MinimumLuminance | Colour 2.0 Lux, BlackWhite 0.1 Lux | |
| White Balance | Indoor/fluorescent light/ halogen light/ LED light model, signal can be adjusted | |
| Minumum Object Distance | 800mm | |
| Signal/ Noise Ratio | >50dB | |
| Outpit Connection | 1.HD SDI 2.HDMI |
DVR Digital Video Recorder
- The system can control HD camera, indoor panoramic camera; The video information can be recorded, stored and broadcast to achieve remote live broadcasting and teaching. The storage capacity is 1000G
